Product Detailed Description
Hardware Specification:
CPU: MSTAR-MSD7T01(128 pin) MIPS 34Kf@600MHz.
Memory: MSTAR-MSD7T01 implant 32X16Mbit DDR2 Frequency1066
Flash: 32M bytes.
Demodulator Type: MSTAR-MSD7T01 implant.
TUNER: Rafael R836.
Demodulation: Terrestrial Receiver DVB-T2/T(EN_302755 V1.3.1/EN 300744).
Input RF Frequency: 48~866MHZ.
Bandwidth: 6MHz, 7MHz, 8MHz.
Constellation: QPSK 16-QAM 64-QAM and 256-QAM.
FEC: 1 / 2, 3 / 5,2 / 3, 3 / 4, 4 / 5, 5 / 6.
Guard Interval: 1 / 128, 1 / 32, 1 / 16, 19 / 256, 1 / 8, 19 / 128, 1 / 4.
FFT Mode: 2K / 8K / 32K.
Input level: -83 - -5dBm.
Software Features:
Fully comply with DVB-T/T2 and H.264, MPEG-4, MPEG-2 Standard.
The maximum speed of the traffic flow of at least 50 Mbit / sec.
Supports 3D interface.
Supports Sleep Timer.
Supports teletext / subtitle / muti-language.
Powerful and highly effective 7-day EPG function.
AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen
USB 2.0 for PVR,TIMESHIFT, software upgrade and media files playback.
Video output resolution: 480i / 576i / 480p / 576p / 720p / 1080i /1080P.
Video Decoder: Compliant with: MPEG-4 part10 / MPEG-2 ISO / IEC 13818.
MPEG-4 Simple/Main / Advanced Profile @ LEVEL3 (10Mbps).
MPEG-2 Main Profile # Main Level (15Mbps).
H.264 MP#L3 (10Mbps). H.264 HP L4.1(25Mbps).
Audio Decoder: MPEG-1, MPEG-2 (Layer I/II), MP3, AAC-LC, WMA,HE-AAC 5.1 multi-chhannel decoding.
MediaCodec: avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc.
Audio Codec: WMA,MP3,AAC (.wma,.mp3,m4a).
Photo Codec: JPEG, BMP, PNG.
Packing:
Product size:12.5x9x3cm n.w.:0.18kg
Package size: 20x16.7x5cm g.w.:0.36kg
Package including:

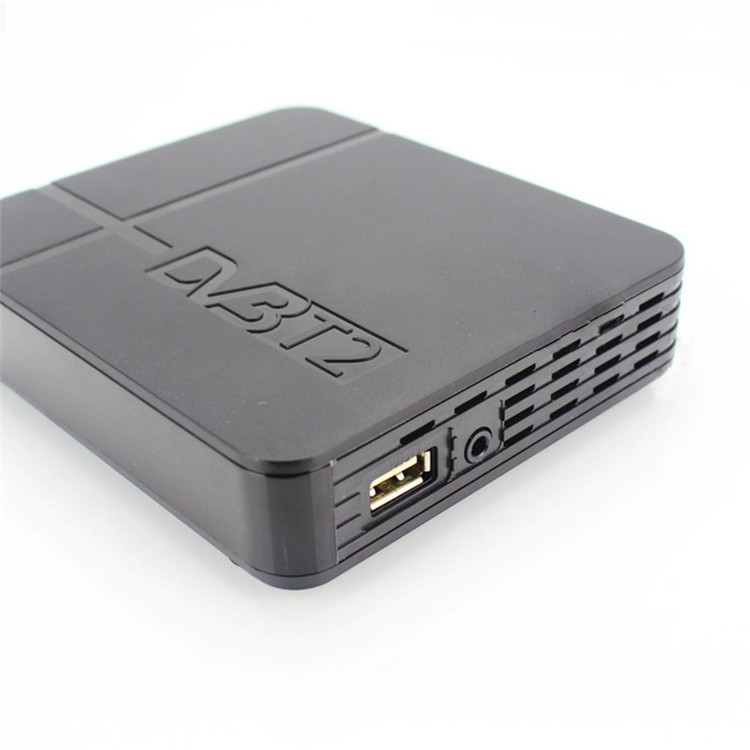

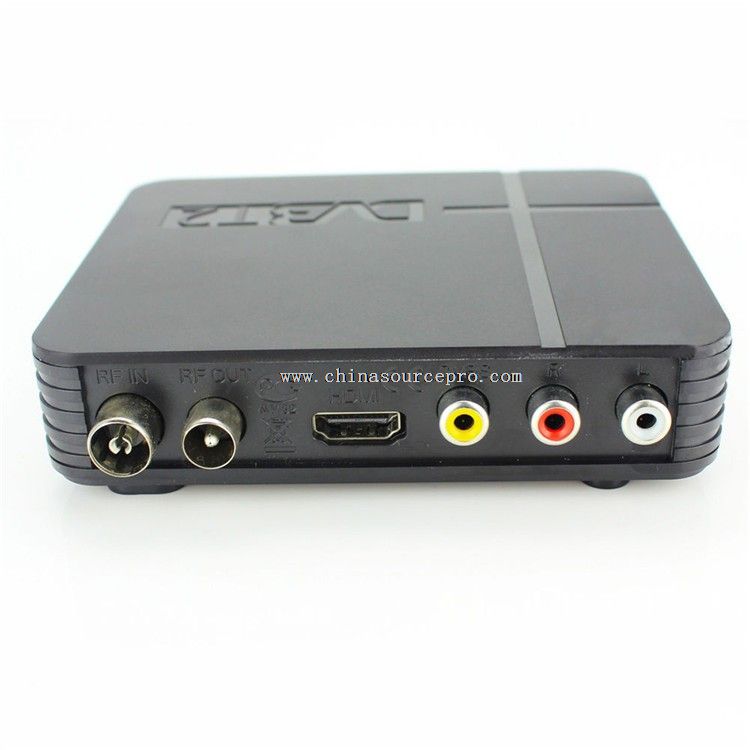

1 x High Definition Digital Terrestrial Receiver
1 x RCA cable(100cm)
1 x Remote controller(Without battery)

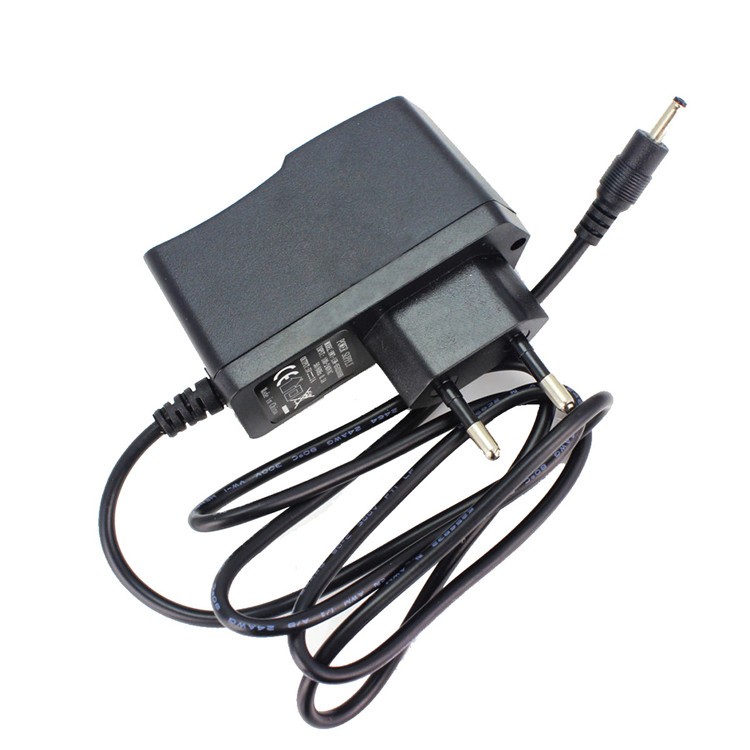

1 x EU Power Adapter
1 x (English) User Manual
